Screen

  • FRAME-SUPPORTED METALBACK
  • 49 1/4” FROM SIDE TO SIDE
  • 25” DIRECTION OF FLOW

Shipping

  • 1 SCREEN PER BOX
  • WEIGHT: 36 LBS
  • DIMENSIONS: 50 1/4” X 25 1/2” X 2”

Panel

  • 14 GAUGE COLD-ROLLED STEEL
  • 11⁄4” X 1” OPENING
  • COMPRESSION “D” SHAPED NITRILE RUBBER SEALS TO LIMIT BYPASS
  • 1″ SQUARE TUBING

COBRA™, VENOM™, LCM3D, & KING COBRA™ (FLAT)

$199 - $275

SKU: N/A

Categories: Replacement Screens

The EV Cobra™, Venom™, LCM3D, & King Cobra™ (Flat) Replacement Screen provides the best quality Made in U.S.A Shaker Screen in the Industry.

Our International and U.S.A. Patented Technology ensures you’ll receive the most durable, best performing replacement screen for your shaker unit.

    [recaptcha]
    cobra-venom-lcm3d-and-king-cobra

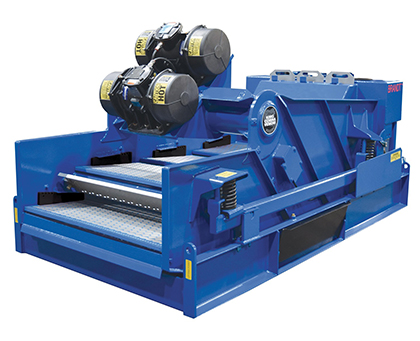

    The BRANDT™ KING COBRA™ VENOM™ shale shaker basket’s patented Contour Plus™ design reduces the liquid pool depth to provide better conveyance of drilled solids across the screens. Configured for 0° at the feed panel and +5° on the remaining panels, the Contour Plus design minimizes basket angle elevation and achieves drier solids and increased screen life by decreasing the mud pool weight over the screens.

    Unlike competitors’ shakers, our Constant-G Control™ (CGC) means the KING COBRA VENOM’s performance actually improves under loaded conditions.

    cobra-venom

    CGC is a patented technology that monitors and automatically adjusts motor speed to maintain optimal G-force depending on fluids and solids loading on the basket. Motor speed increases with load, so it’s G-force when you need it, reducing wear and tear on components and screens when loads are light.

    Worldwide Service & Support

    To assure our customer’s high performance and profitable operations, our services include 24 hour call support, field maintenance, and installation & operations training.

    EV Oilfield backs up our screens with technical experience in all principal global drilling regions.

    map

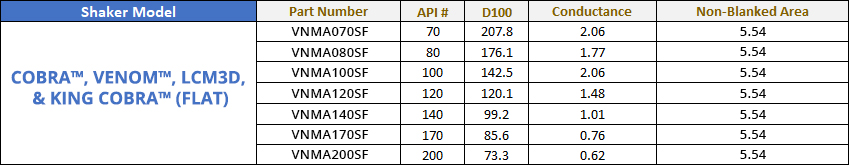

      Model
      API #
      D100
      Conductance
      Non-Blanket Area
      Quantity
      Company Name
      Address
      City
      State
      Zip
      Phone
      Email
      [recaptcha]

      WATCH IT WORK!
